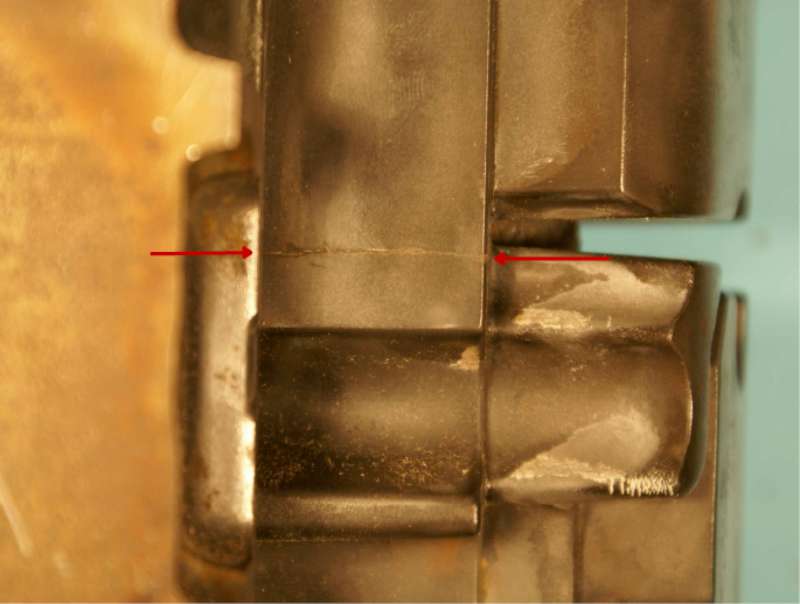

This view shows a crack that runs down one of the side faces and into a longitudinal groove on the side. Red arrows mark the ends of the crack.
|
|
|
This is a closer view of the crack as seen in a top-down view. The two red arrows indicate the ends of the crack.
|
|
|

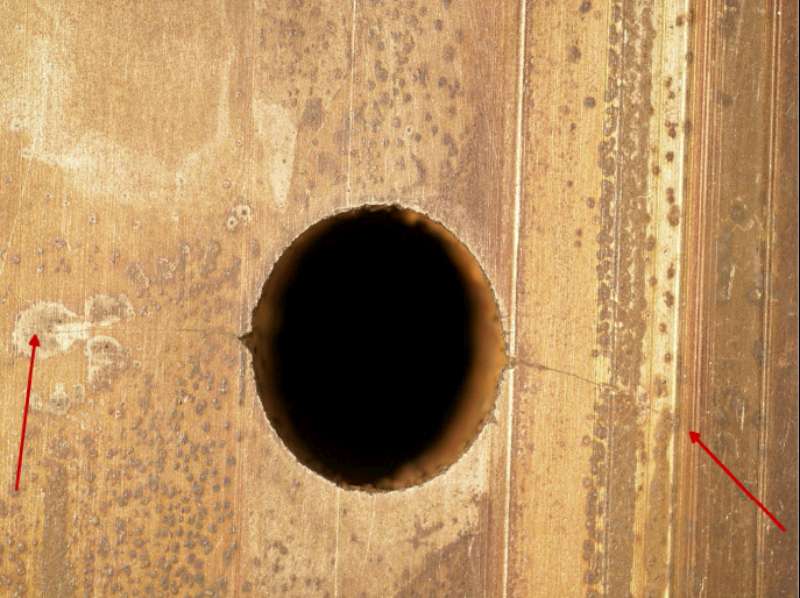

This view shows the crack that runs down the other side face and into longitudinal groove. Red arrows mark the ends of the crack.
|
|
|
|

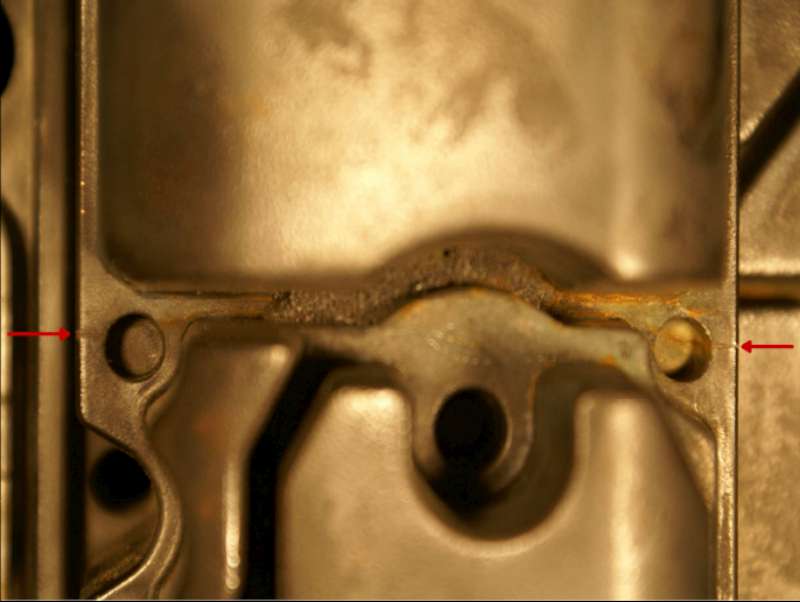

This is a view of a water line crack. The green circle indicates the fracture surface of one of the cracks that is radiating from the water cooling line that was exposed.
|
|
|
This is a close view of cracks radiating from a cooling line. Red arrows indicate cracks emanating from the cooling line at the 3:00 o’clock and 9:00 o’clock positions. The crack at the 9:00 o’clock position is about 5/16” long, while the crack at the 3:00 o’clock position is approximately 1/2” long.
|
|
|

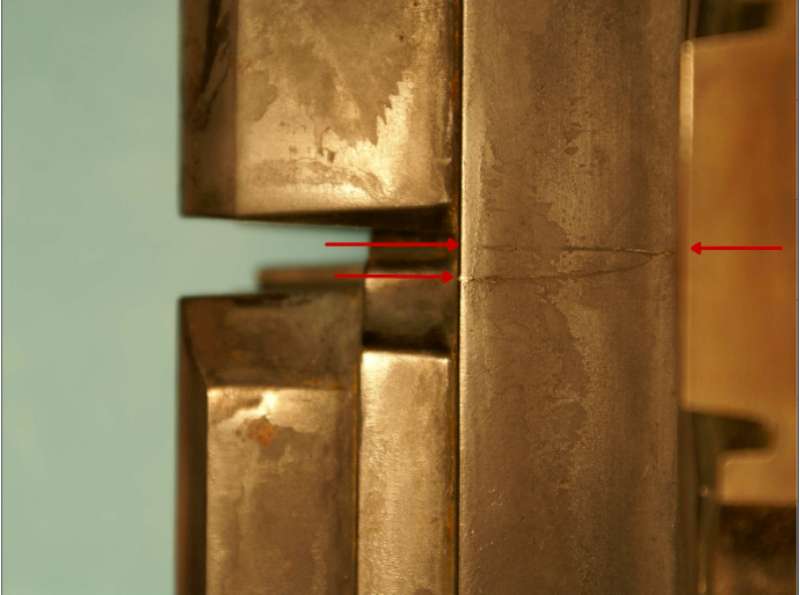

This is a 50x magnification view of the cross-section of a water line fracture origin. The fracture surface is just to the right. Note that there are several other cracks seen in this cross-section through the valley. The multiplicity of cracks offers evidence that the insert experienced high service stresses.
|
|
|
